This topic explains how to install the Collaborator plug-in for Rational Team Concert.
Important: Since version 8.5 Collaborator requires Java 7. Rational Team Concert 6.0.1 and later also require Java 7. Whereas, Rational Team Concert 4.x - 6.0 (prior to 6.0.1) require Java 6, and RTC 2.x - 3.x require Java 5.
Therefore to integrate Collaborator and Rational Team Concert you will need to install a specific version of Rational Team Concert Plug-In.
To integrate with Rational Team Concert 2.x - 3.x you also need to downgrade your Collaborator (both Server and Client components) to CodeCollaborator/PeerReview Complete version 6.5.x (as only these versions supported Java 5).
| 1. | Download the update site .zip package with the plug-in from our web site: |
| • | For Rational Team Concert Server version 6.0.1 and higher download the java_7 version of Collaborator Eclipse Plug-In. |
| • | For Rational Team Concert Server versions 4.x - 6.0 (prior to 6.0.1) download Rational Team Concert Plug-In version 8.4.8406.001. |
Note: For more information about different versions, see Version Compatibility Table in Overview.

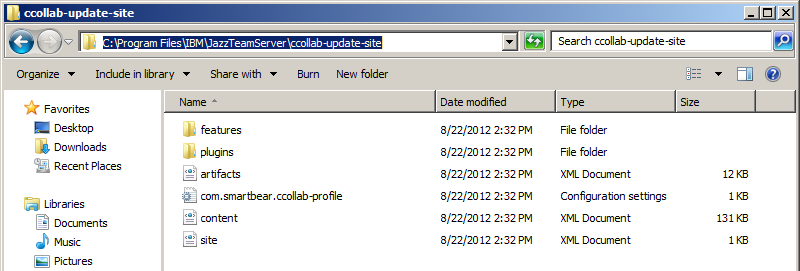

| 2. | Extract files from the downloaded .zip archive to the <$JAZZ_ROOT>/ccollab-update-site folder on the Rational Team Concert server computer. For example, the folder name can be like C:\Program Files\IBM\JazzTeamServer\ccollab-update-site. |

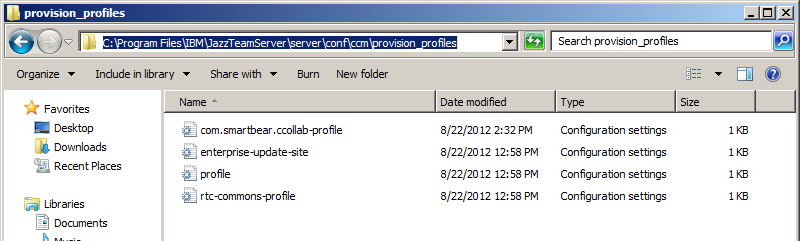

| 3. | Copy the com.smartbear.ccollab-profile.ini file from this folder to the <$JAZZ_ROOT>\server\conf\ccm\provision_profiles folder. |
| 4. | Now you need to reset your Jazz Team Server: |
| • | Open the following web page in your web browser: |
If you use Rational Team Concert 4 or later:
If you use Rational Team Concert 3 or earlier:

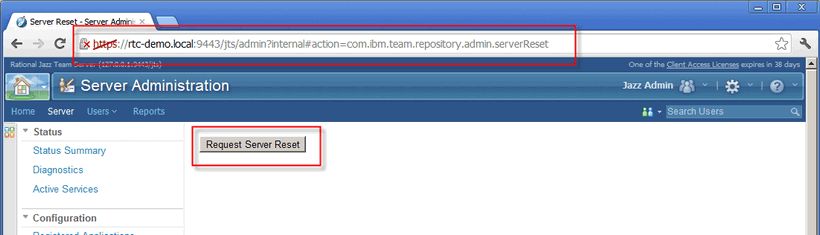

| • | On the page, click Request Server Reset. This will command Rational Team Concert to load the Collaborator plug-in next time the Rational Team Concert service restarts. |
| 5. | Restart the Jazz Server. To do this: |
| • | Select Stop the Jazz Team Server from Windows' Program Files menu, or run the shutdown.bat file in the Jazz Install directory. |

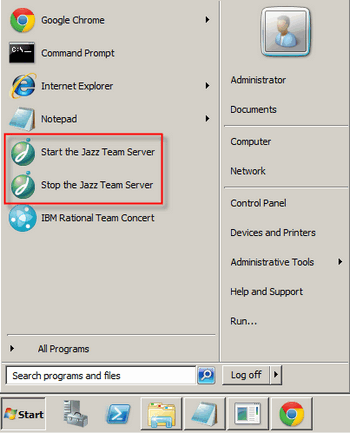

| • | Run the server by selecting Start the Jazz Team Server from the Program Files menu: |
| 6. | Check whether the plug-in is loaded: |
| • | Open the Component Status page: |
| • | Click the refresh icon next to the Component Status item in the left-side menu to update the page after it loads. |
| • | Check that the com.smartbear.collaborator.rtc.process.ICollaboratorService service is active. |
| • | Now click Provision Status in the menu menu entry: |
| • | Search for smartbear on the page and make sure that the plug-in has been installed and initialized. |
Provision Status page: Checking whether the plug-in is installed
CRJAZ0300I This feature is being installed: "com.smartbear.collaborator.rtc.process.feature_NN.N.NNNNN.NNN".
CRJAZ0299I Installing bundle from the URL "file:/<JAZZ_ROOT>/server/conf/../../ccollab-update-site/plugins/com.smartbear.collaborator_NN.N.NNNNN.NNN.jar".
CRJAZ0299I Installing bundle from the URL "file:/<JAZZ_ROOT>/server/conf/../../ccollab-update-site/plugins/com.smartbear.collaborator.rtc.common_NN.N.NNNNN.NNN.jar".
CRJAZ0299I Installing bundle from the URL "file:/<JAZZ_ROOT>/server/conf/../../ccollab-update-site/plugins/com.smartbear.collaborator.rtc.process_NN.N.NNNNN.NNN.jar".
CRJAZ0299I Installing bundle from the URL "file:/<JAZZ_ROOT>/server/conf/../../ccollab-update-site/plugins/com.smartbear.collaborator.rtc.component_NN.N.NNNNN.NNN.jar".
where NN.N.NNNNN.NNN stands for the version number of Collaborator plug-in.
Provision Status page: Checking whether the plug-in is started
CRJAZ0307I Starting the bundle "com.smartbear.collaborator_NN.N.NNNNN.NNN".
CRJAZ0307I Starting the bundle "com.smartbear.collaborator.rtc.common_NN.N.NNNNN.NNN".
CRJAZ0307I Starting the bundle "com.smartbear.collaborator.rtc.process_NN.N.NNNNN.NNN".
CRJAZ0307I Starting the bundle "com.smartbear.collaborator.rtc.component_NN.N.NNNNN.NNN".
where NN.N.NNNNN.NNN stands for the version number of Collaborator plug-in.
Other Configuration Actions
After you installed the plug-in, you need to configure it. See Configuring the Collaborator Plug-In for Rational Team Concert.
